TS-WB series PRIMARY CRUSHER

  • TS-W250

  • TS-WB350

  • TS-WB500V

  • TS-WB620V

  • TS-WB950V

  • TS-WB1000V

  • TS-WB1100V

  • TS-WB1400V

  • TS-WB1600V

  • TS-WB1900V

  • TS-W2200V

  • TS-WB2400V

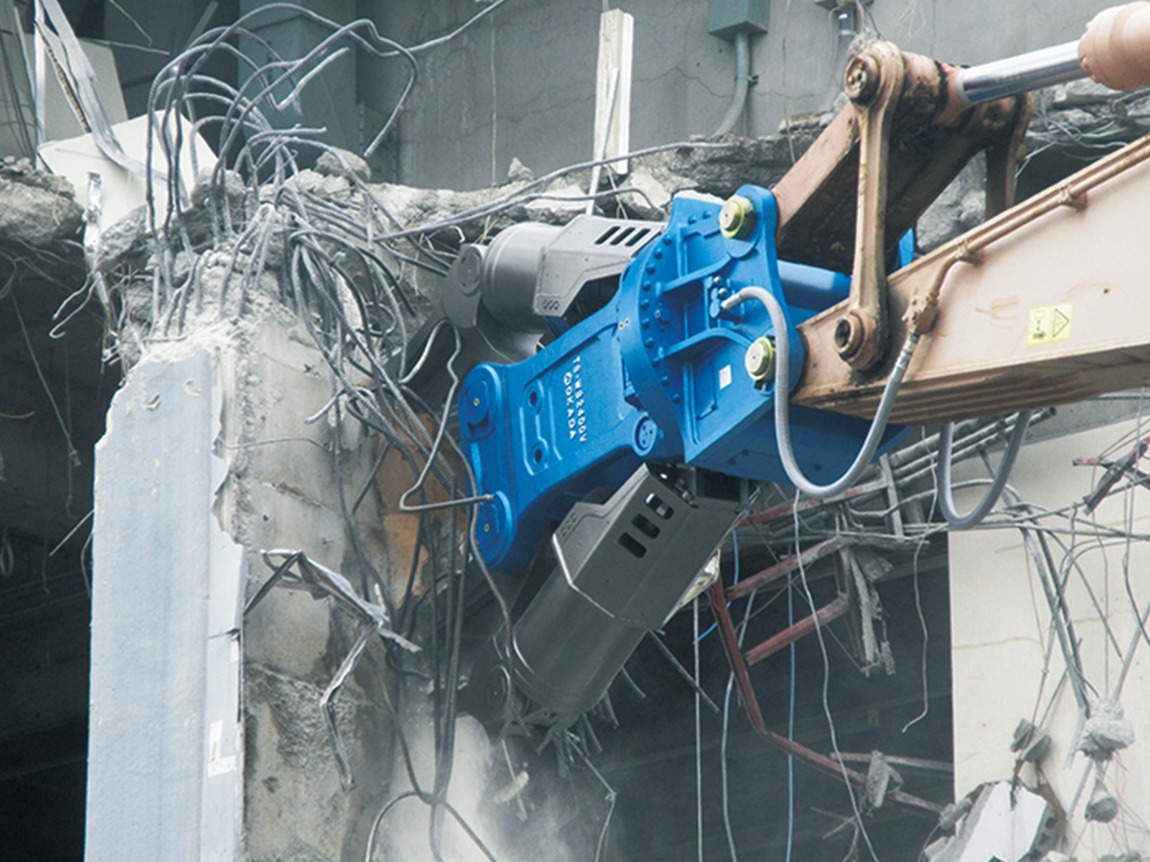

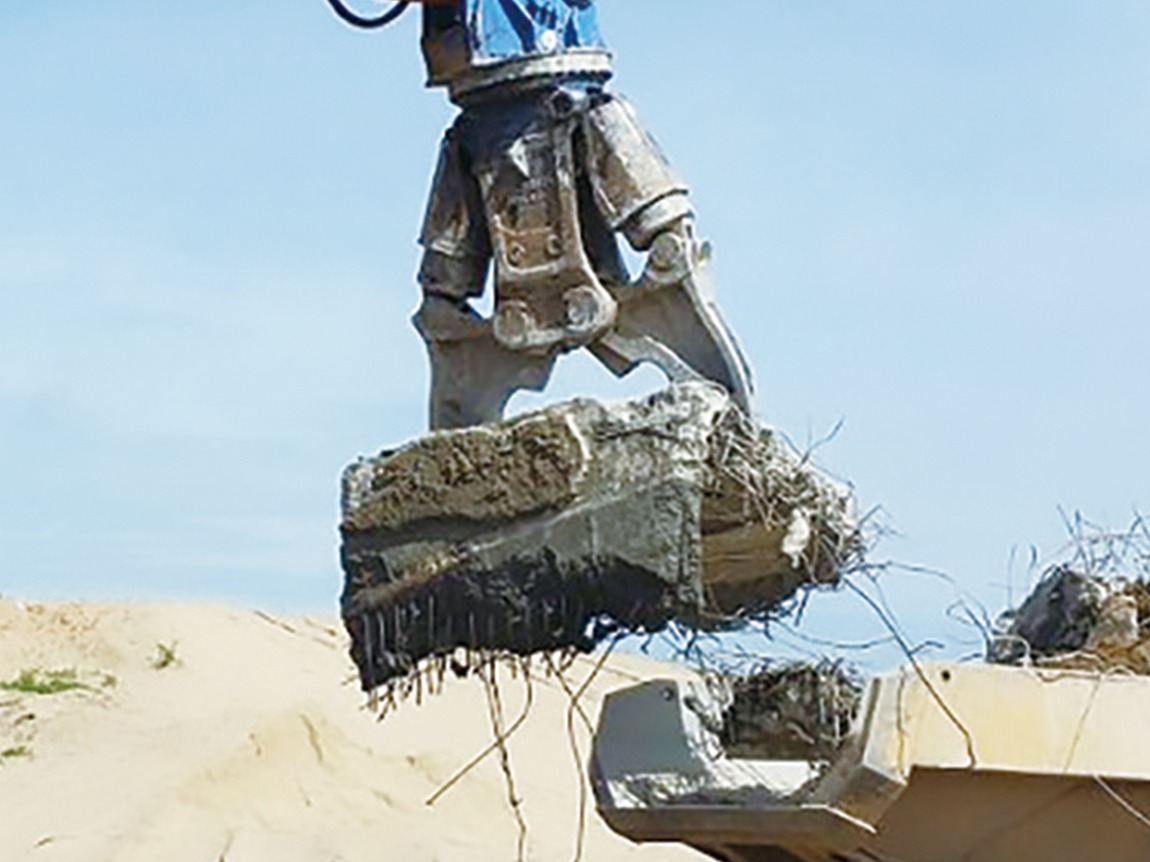

Demolition crusher processes reinforced concrete structure.
Concrete building, Concrete bridge, concrete foundation.

Features

  1. The special casting alloy used delivers a lightweight crusher with superior durability.
  2. Wider and deeper crushing area.
  3. The wedge arm penetrates concrete structures.
  4. The cylinder rod is protected by a rod cover.
    (Except for the TS-W250, TS-WB350, TS-WB500V, TS-W2200V models).
  5. Robust assembly.
  6. A high oil flow speed valve reduces cycle time.
    (Except for the TS-W250, TS-WB350 models.)
  7. The strong rotator features a durable bearing.



Specifications

■TS-WB series(Small Range)
Unit TS-W250 TS-WB350 TS-WB500V
Rotation Type FR FR FR
Operating Weight [kg] 180 250 480
Overall Length [mm] 950 1070 1390
Max. Jaw Opening/Closing [mm] 250/0 360/0 500/0
Overall Width [mm] 635 680 835
Crushing Force (Center) [kN] 175 240 330
Excavator Set Pressure [MPa] 21 25 25
Speed Valve YES
Suitable Carrier Range [Ton] 1.5~2.5 2.5~4 4~5.5



■TS-WB series(Medium Range)
Unit TS-WB620V TS-WB950V TS-WB1000V TS-WB1100V TS-WB1400V TS-WB1600V TS-WB1900V
Rotation Type FR/ARTS/HR FR/ARTS/HR FR FR/ARTS/HR FR/HR FR/HR FR/HR
Operating Weight [kg] 780/920/920 1610/1690/1690 2190 2480/2540/2540 4230/4290 4960 7410
Overall Length [mm] 1670/1860/1850 2140/2280/2280 2425 2525/2635/2635 2970 3160 3560
Max. Jaw Opening/Closing [mm] 620/0 950/0 1030/0 1100/0 1400/0 1600/0 1900/0
Overall Width [mm] 1105 1405 1530 1625 1995 2275 2600
Crushing Force (Center) [kN] 355 605 750 940 1100 1320 2000
Excavator Set Pressure [MPa] 28 35 35 35 35 35 35
Speed Valve YES YES YES YES YES YES YES
Suitable Carrier Range [Ton] 6~13 12~25 18~30 20~35 30~50 40~70 70~100



■TS-WB series(Heavy Range)
Unit TS-W2200V TS-WB2400V
Rotation Type FR/HR HR
Operating Weight [kg] 9700 12000
Overall Length [mm] 3705 4050
Max. Jaw Opening/Closing [mm] 2200/0 2400/0
Overall Width [mm] 3090 3160
Crushing Force (Center) [kN] 2100 2150
Excavator Set Pressure [MPa] 35 35
Speed Valve YES YES
Suitable Carrier Range [Ton] 70~100 100~

Note) The above specifications are subject to change without notice. The above specifications assume the use of an OKADA universal pin mount.
