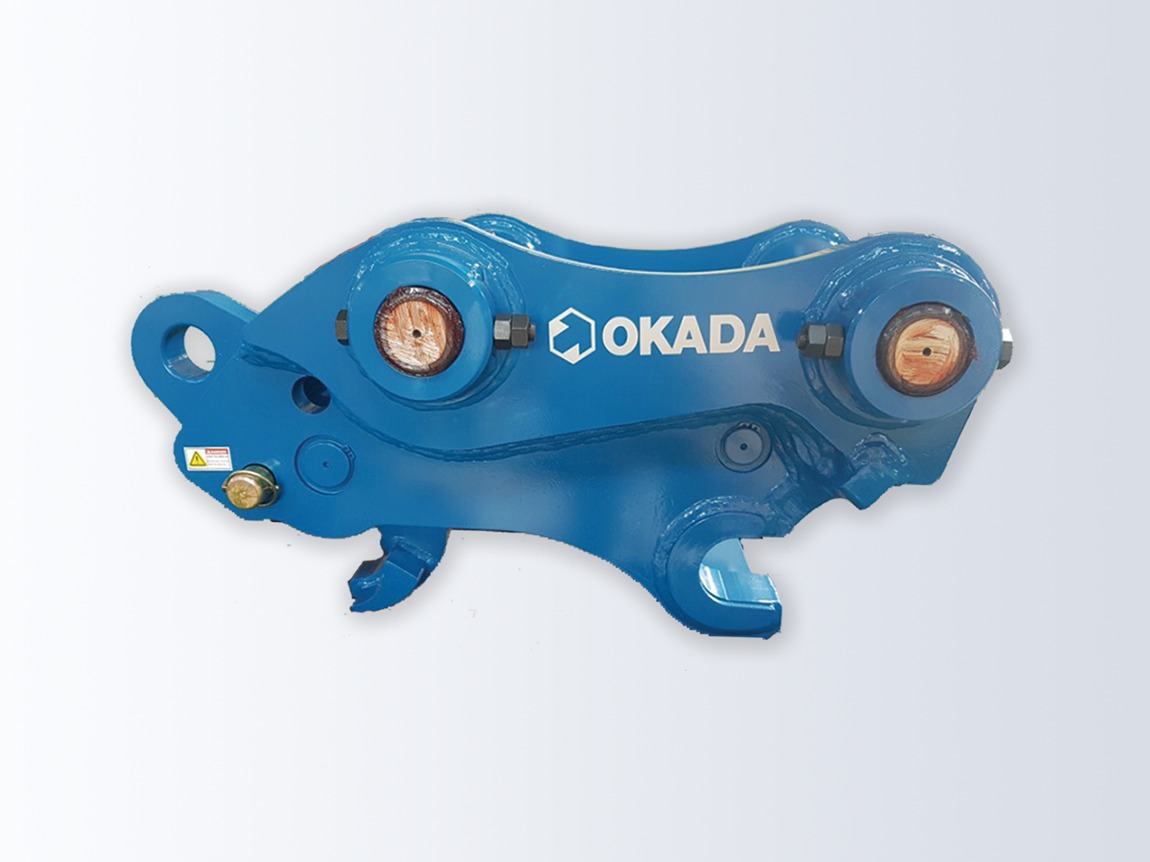

OKH series QUICK COUPLER
-
OKH-20
-
OKH-45
-
OKH-60
-
OKH-80
-
OKH-150
-
OKH-250
Features

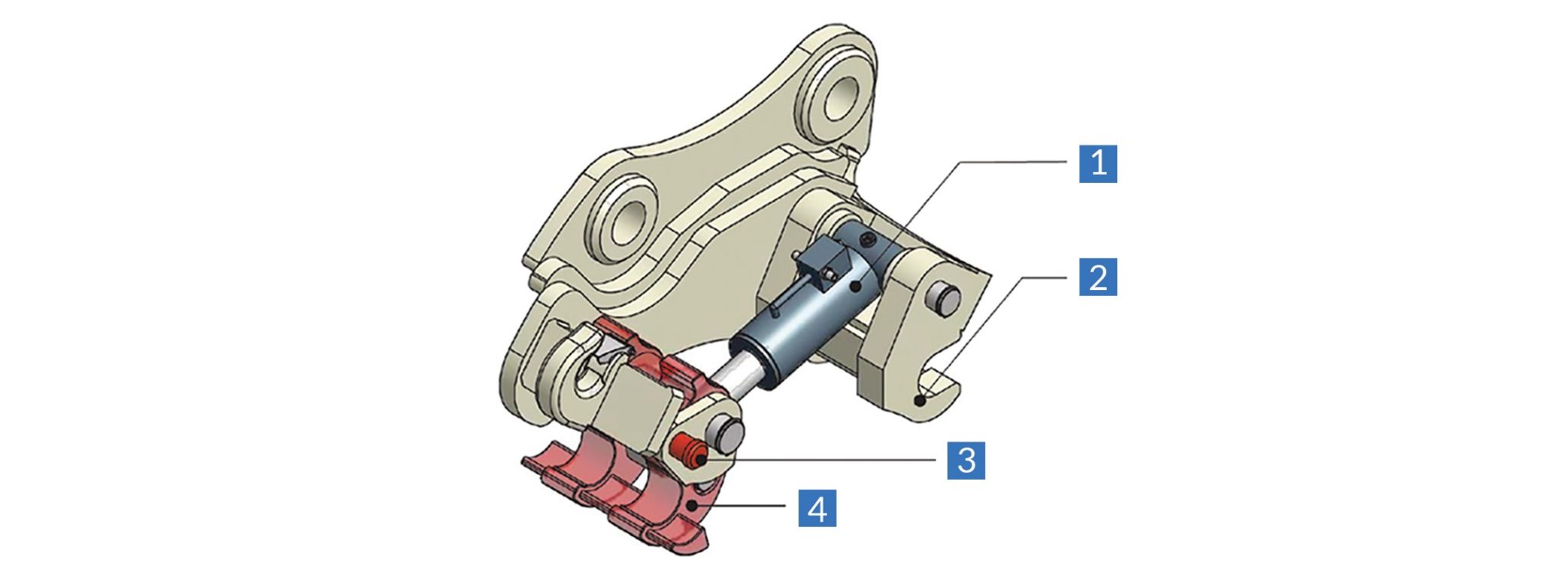

- HYDRAULIC CYLINDER
Equipped with integrated lock valve.
Even in the event of hose failure,the hooks stay on. - FIXED LUG
- SAFETY PIN
Manually installed after primary hook is engaged. - PRIMARY HOOK
Actuated by hydraulic cylinder to firmly grip the pin.
Specifications
■OKH series QUICK COUPLER（Hydraulic Type)
| Unit | OKH-20 | OKH-45 | OKH-60 | OKH-80 | OKH-150 | OKH-250 | |
|---|---|---|---|---|---|---|---|
| Operating Weight | [kg] | 26~34 | 32~49 | 60~75 | 70~91 | 175~210 | 270~350 |

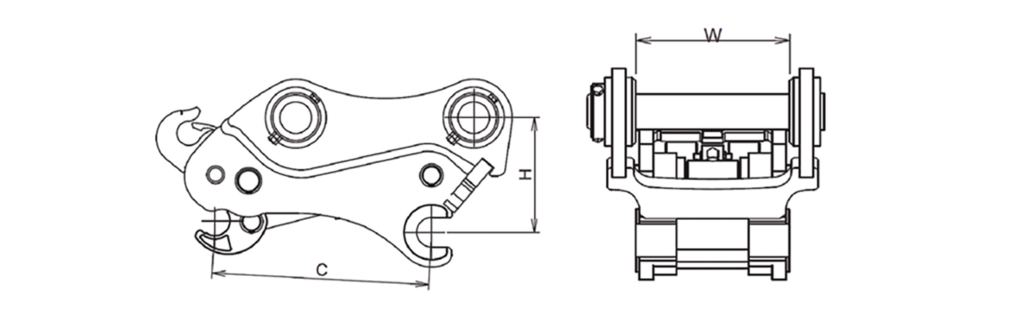

| Pin Center ( C ) | [mm] | 83~155 | 135~220 | 220~310 | 240~390 | 360~450 | 380~535 |
| Pin Height ( H ) | [mm] | 145~165 | 150~170 | 145~165 | 175~183 | 220~240 | 285~290 |
| Width ( W ) | [mm] | 95~119 | 122~150 | 150~172 | 160~200 | 218~275 | 305~334 |
| Pin Diameter | [mm] | 30 | 35~40 | 45 | 45~60 | 60~65 | 75~90 |
| Suitable Carrier Range | [Ton] | 1.5~2 | 2~4.5 | 4.5~6 | 6~8 | 8~15 | 18~25 |
Note) The above specifications are subject to change without notice.
The weight varies depending on the type of excavator.
The pin center (C) above varies per model of carrier machine.
